| Brand Name : | Greatwall |
| Certification : | ISO 9001:2008 |
| Model Number : | DL series |
| Price : | US $850 - 6,905 |
| Delivery Time : | within 7 working days after receiving the payment |
| Payment Terms : | T/T |
| Supply Ability : | 100 sets/month |
It is particularly suitable for measuring chemical,biological and physical experiment in low temperature,it it is used for grouping instrument of pharmaceutical health ,foodstuff ,chemistry ,and university or academic institution.

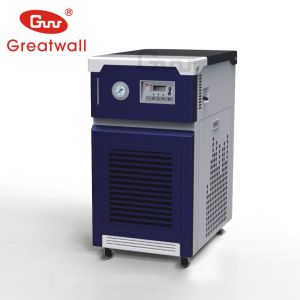

Model:DL10-1000, DL10-2000, DL10-3000, DL10-6000
Application fields and features:

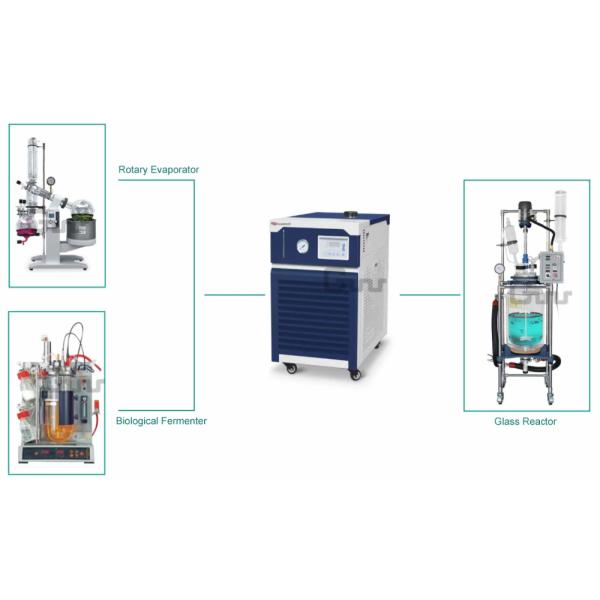

1. Chemistry,biological area: biological fermenter, chemical reactor, synthetic tank and so on.
2. Hermetic closed recirculating system can avoid refrigerating medium evaporation and pollution, save
energy.
3. Circulating system is equipped with filter apparatus, clean refrigerating medium avoids instrument lin clogging.
4. Compressor brand: Copeland from United States, Embraco from Brazil.
5. With built-in liquid-level monitor, liquid-level inside the bath can be checked visually.
6. Circulating system is equipped with presure gauge, displays circulating system pressure.
7. Customized models can meet the customers' different requirements.
8. Panels on the both sides can be removed easily, convenient to maintain and clean.
Specifications:
Model | DL10-1000 | DL10-2000 | DL10-3000 | DL10-6000 |
Temperature range/℃ | -10~25 | |||
Temperature Stability/℃ | ±2 | |||
power supply (V/Hz) | Single phase 220V/50Hz | Three phase 380V/50Hz | ||
Feeding quantity(L) | 10 | 17 | 30 | 40 |
Colling capacity (W) | 1000W@15℃ | 2000W@15℃ | 3000W@15℃ | 6000W@15℃ |
Refrigerating medium | R134a | |||
Pump flow(L/min) | 30L/Min | 30L/Min | 30L/Min | 40L/Min |
Pump Pressure(bar) | 1 | 1 | 1 | 1.4 |
Circular Interface Size | 1/2’’ | 1/2’’ | 1/2’’ | 3/4’’ |
Main Machine Dimensions (mm) | 675L*426W*695H | 675L*456W*775H | 740L*490W*830H | 1020L*635W*1030H |
Model | DL30-300 | DL30-700 | DL30-1000 | DL30-2500 | |
Temp.Range (℃) | -30~5 | ||||
Temp.Stability(℃) | ±2 | ||||
Power Suply(V/Hz) | |||||
|
|
